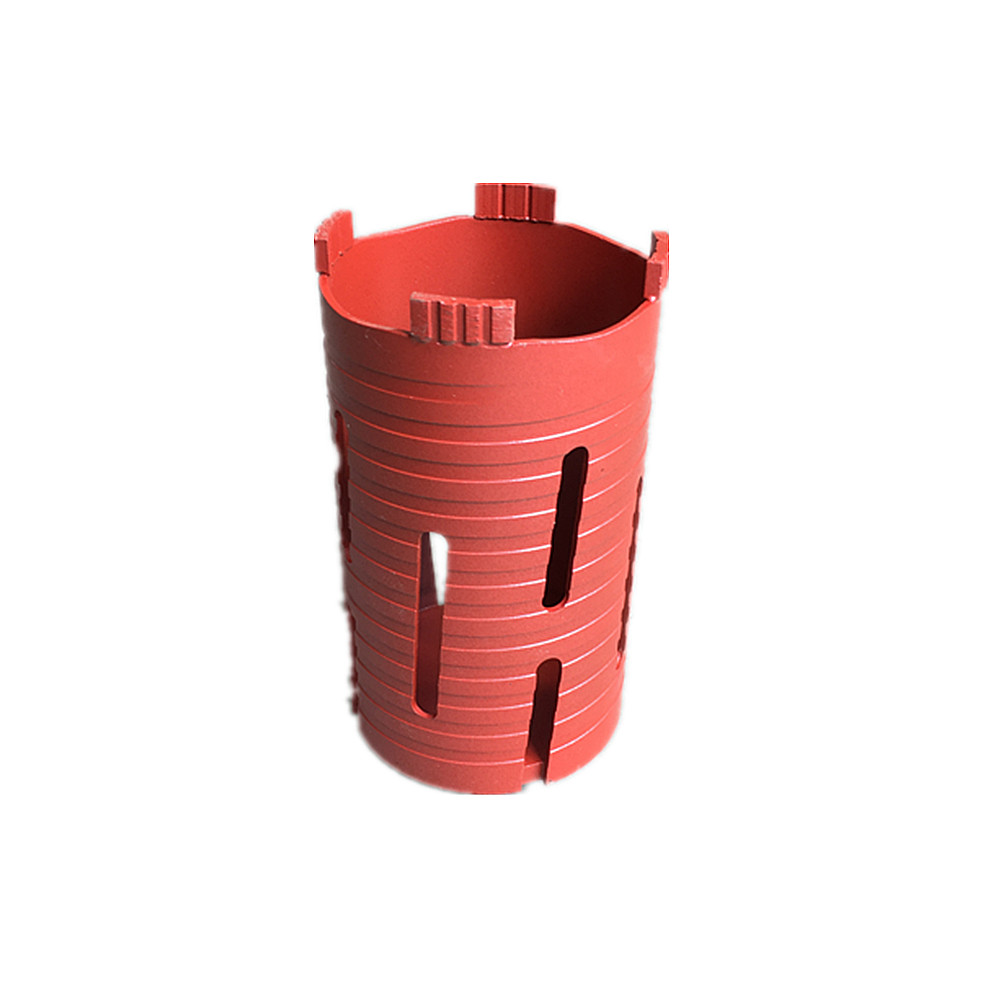

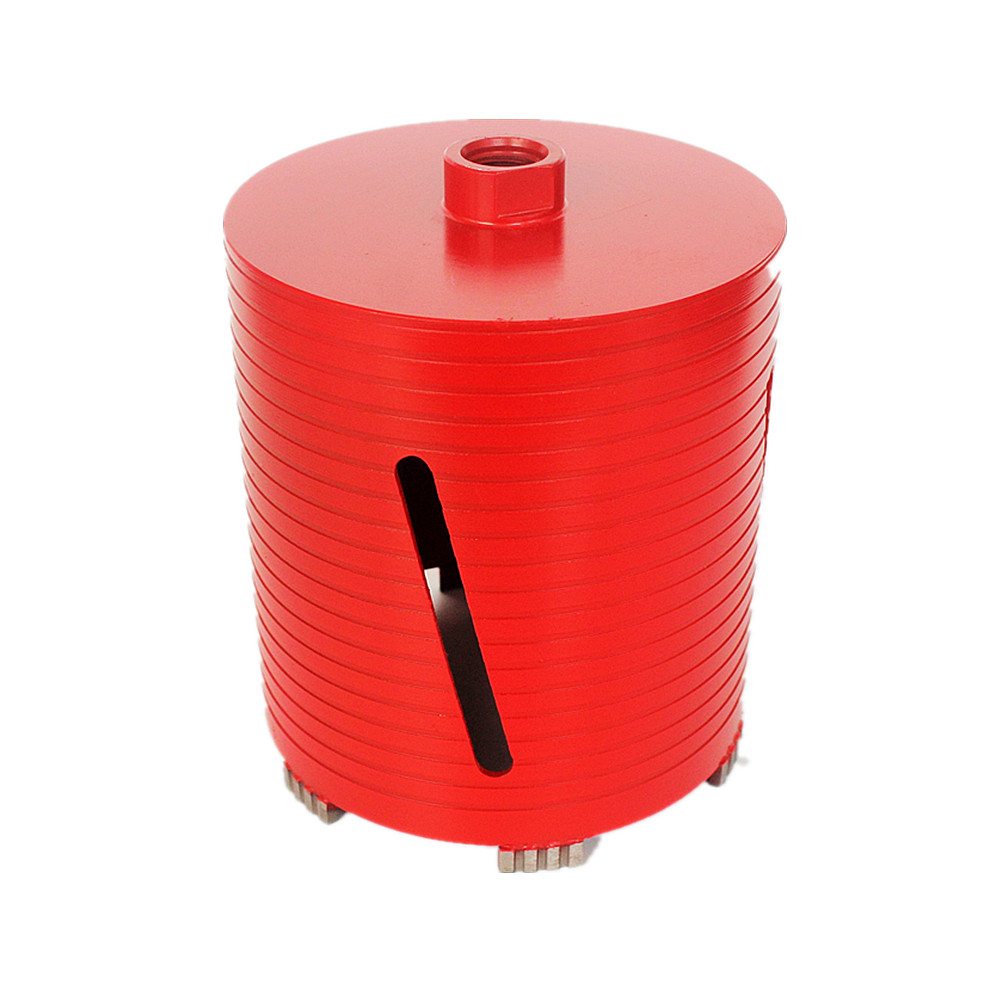

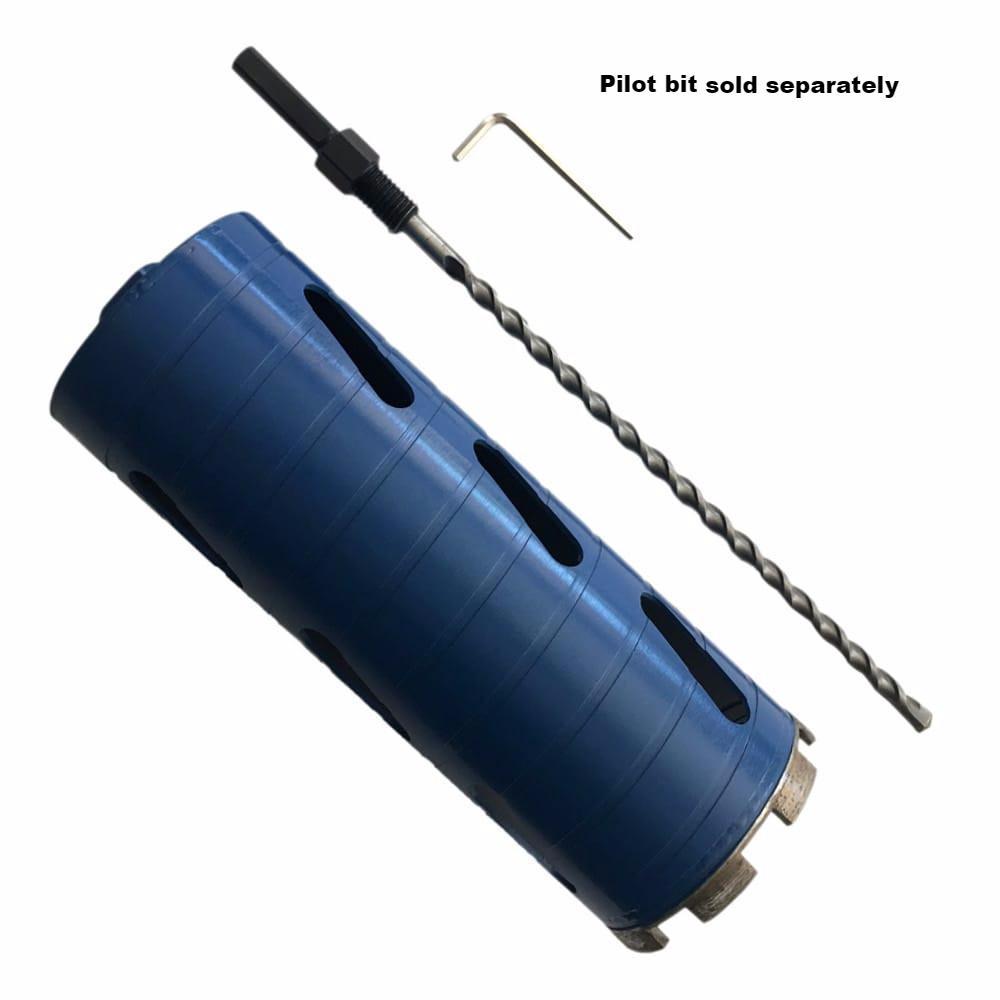

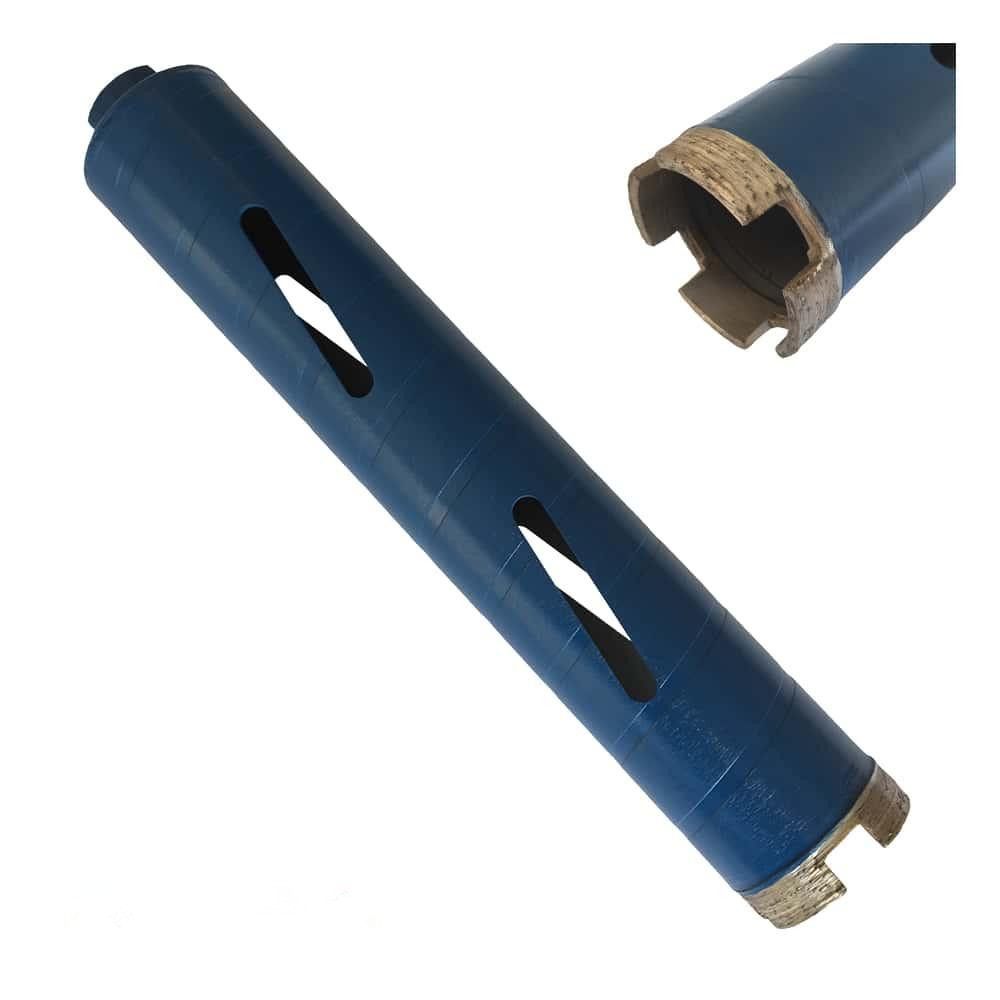

Diamond Core Drill Bit

Applications: Cured reinforced concrete, green concrete, and abrasive materials.Standard segment provides long time.Crowned type is available.

Machinery: Hydraulic drilling machines , electric hand-held drills

Fast Cutting & Durable (MM)

Standard

123567

Item No.

Diameter

Segment No.

Segment Size

Adaptor

FT-01

22

3

10*3*8/10

1/2"BSP/11/4"UNC

FT-03

32

3

15*3*8/10

1/2"BSP/11/4"UNC

FT-04

38

4

15*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-05

48

4

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-06

52

4

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-07

65

4

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-08

78

5

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-09

91

5

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-10

107

6

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-11

117

6

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-12

127

8

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-13

152

10

24*3/3.5*8/10

1/2"BSP/11/4"UNC

FT-14

162

14

24*3/3.5*8/10

1/2"BSP/11/4"UNC

Dry/Wet
